Horizontal Balancing Machines

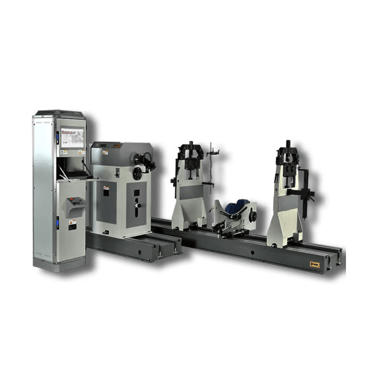

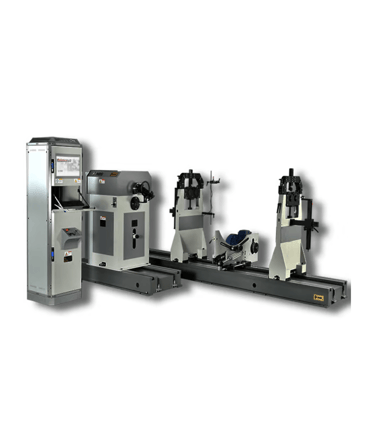

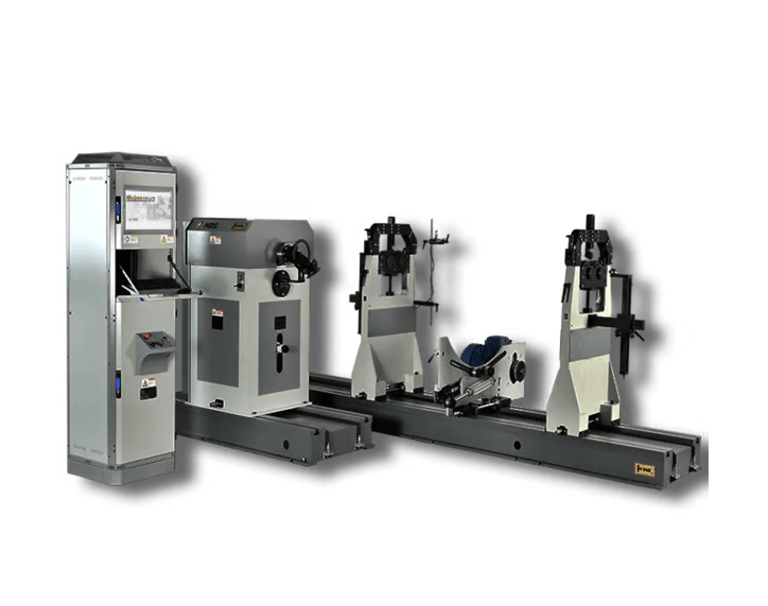

H-IHB -7
Max.Rotor Weight
Min.Rotor Weight
Max.Rotor Diameter
Min.Shaft Diameter
Max.Shaft Diameter
Motor power
Drive Unit
7000 kg
100 kg
2000 mm
40 mm
320 mm
22 kW
H-IHB -10
10000 kg
Bed Length
*Please contact for optional bed
4000 mm
22 kW
320 mm
40 mm
2000 mm
150 kg
4000 mm
Shaft (opt.) or Belt (Std.)
Max.Rotor Weight
Min.Rotor Weight
Max.Rotor Diameter
Min.Shaft Diameter
Max.Shaft Diameter
Motor power
Drive Unit
30 kg
1400 mm
10 mm
240 mm
15 kW
Shaft (opt.) or Belt (Std.)
Bed Length
3000 mm
1000 kg
15 kg
1400 mm
10 mm
240 mm
11 kW
3000 mm
*Please contact for optional bed

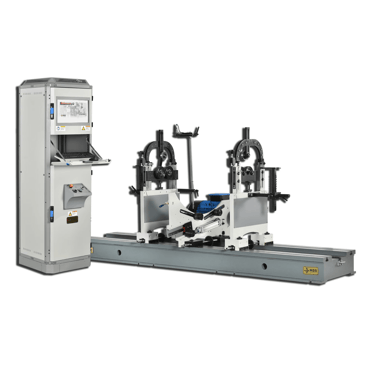

H-IHB -1

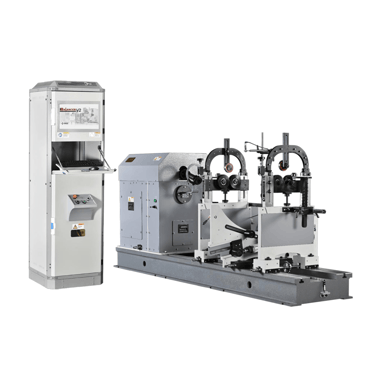

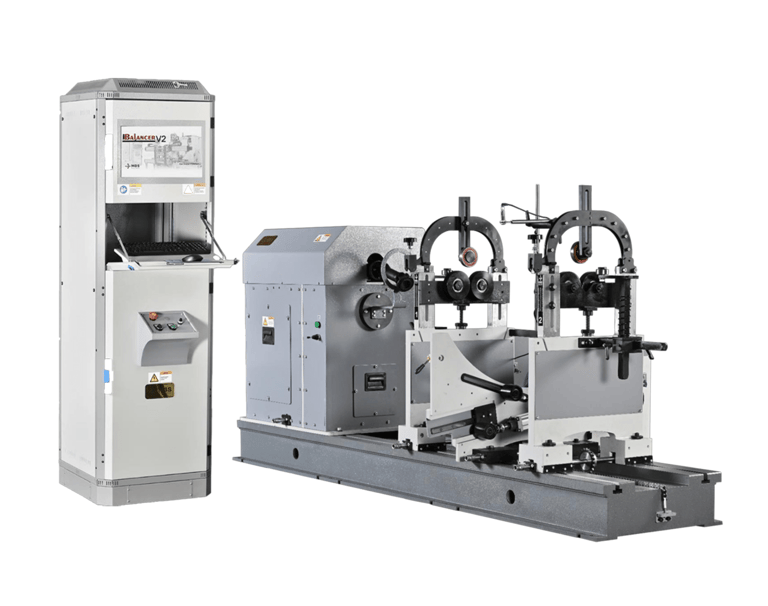

H-IHB -3
3000 kg
Max.Rotor Weight
Min.Rotor Weight
Max.Rotor Diameter
Min.Shaft Diameter
Max.Shaft Diameter
Motor power
Drive Unit
300 kg
15 kg
800 mm
9 mm
130 mm
5,5 kW
Shaft (opt.) or Belt (Std.)
Bed Length
1500 mm
*Please contact for optional bed

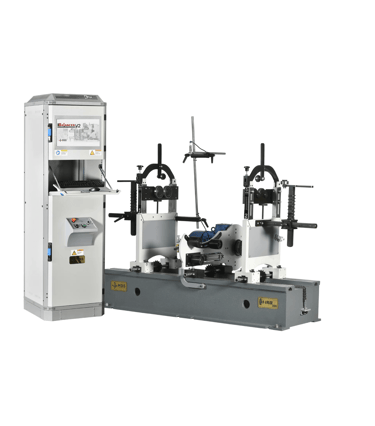

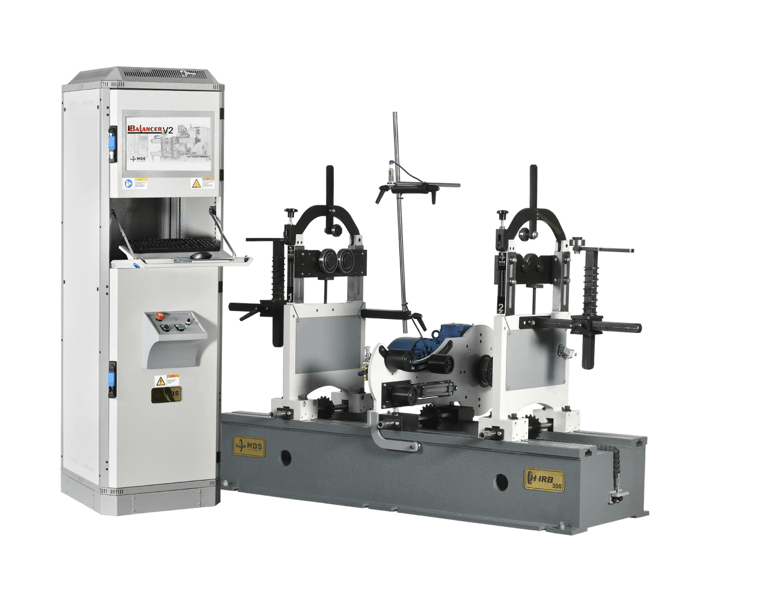

H-IRB -300
Max.Rotor Weight
Min.Rotor Weight
Max.Rotor Diameter
Min.Shaft Diameter
Max.Shaft Diameter
Motor power
Drive Unit
150 kg
15 kg
500 mm
5 mm
130 mm
4 kW
Belt (Std.)
Bed Length
1500 mm
50 kg
10 kg
500 mm
5 mm
130 mm
2,2 kW
1500 mm
*Please contact for optional bed
Belt (Std.)

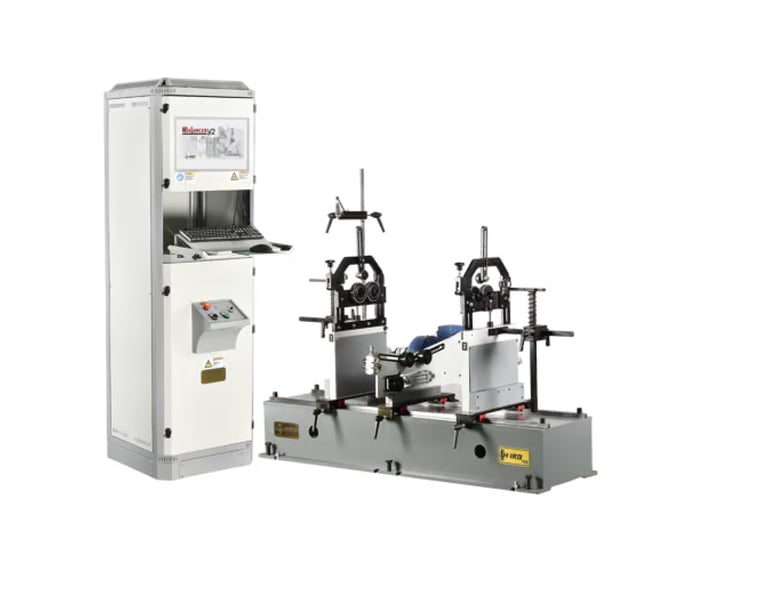

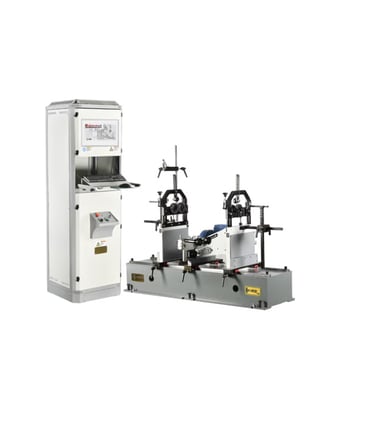

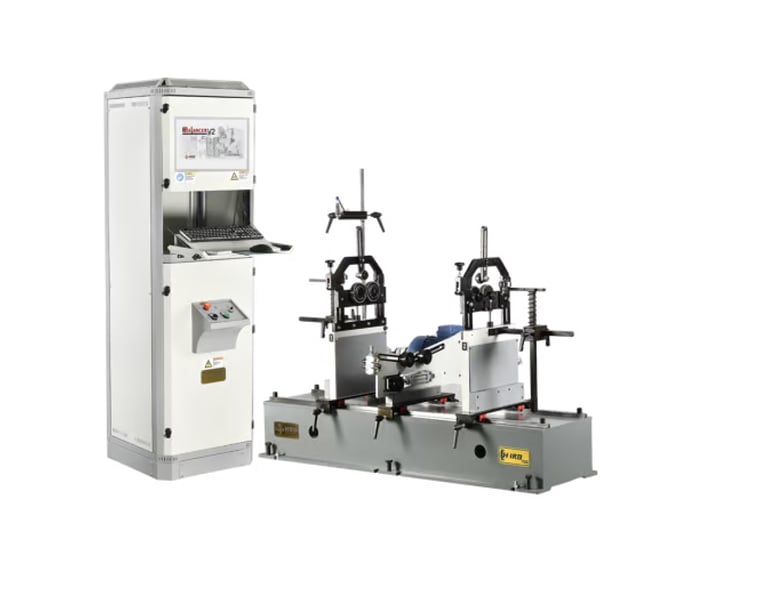

H-IRB -50

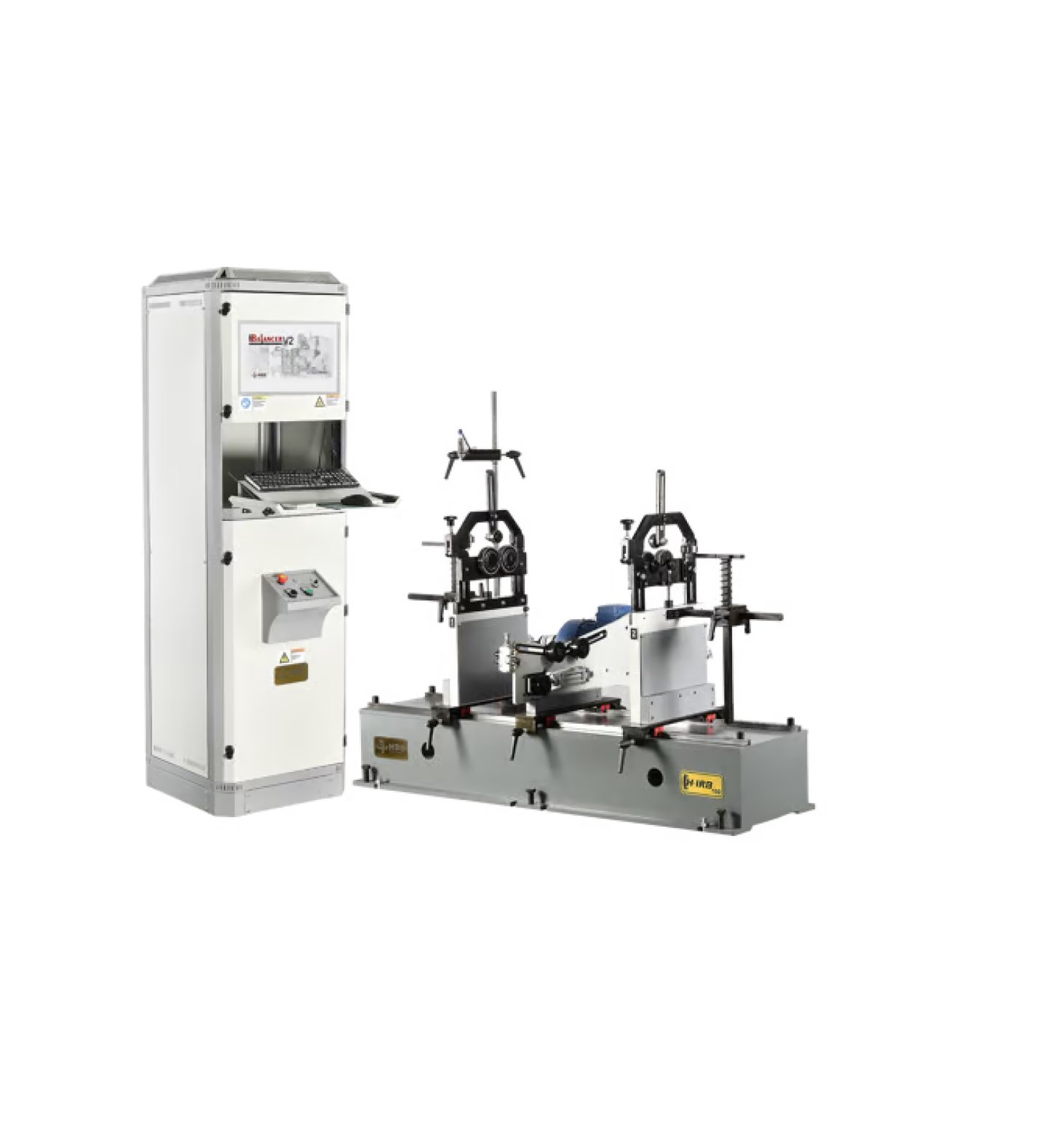

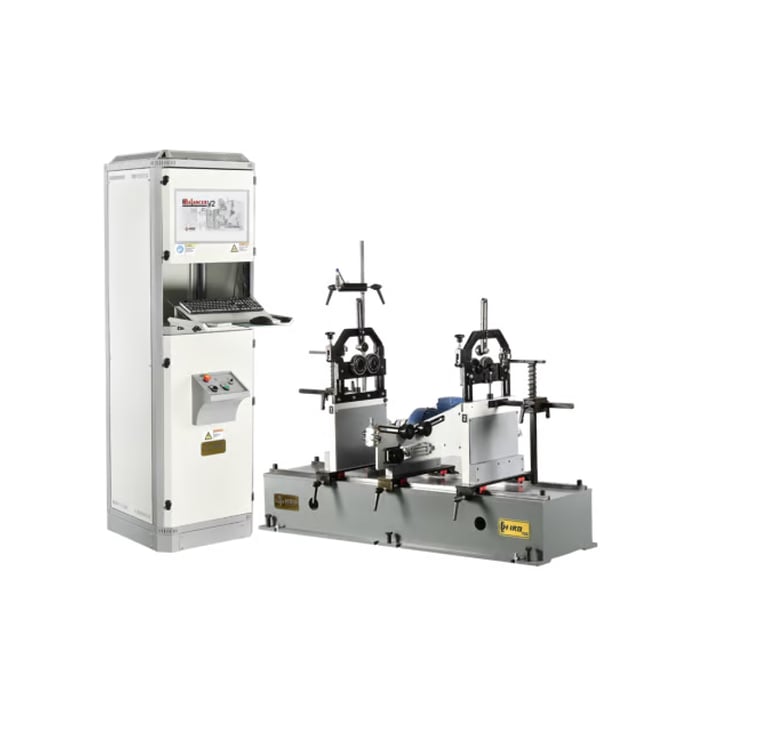

H-IRB -150
Max.Rotor Weight
Min.Rotor Weight
Max.Rotor Diameter
Min.Shaft Diameter
Max.Shaft Diameter
Motor Power
Drive Unit
Shaft (Std.)
Bed Length
300 kg
20 kg
600 mm
9 mm
140 mm
4 kW
5500 mm
*Model H-IHB-300 is produced with standard 4 legs. 5th. the leg is optional.
H-IHB -300
H-IHB Heavy Horizontal Balancing Machine is used for static and dynamic balancing of work pieces such as impeller , fan, propeller, electric rotor , separator, turbine , rollers and so on.
We advice Shaft Drive Unit for our Heavy duty machines. Machine speed can be adjusted by gearbox located on shaft drive and by the speed controller. Rotor is connected to the machine by the help of industrial shaft. It allows precise measurements and ease of use for big diameter and heavy rotor types.
Balancing program works with the licensed Windows operating system. It is easy to be used by the operator. Re- calibration for different rotor types is not required. Operator can calculate the tolerance in acoordance with ISO 1940 standards before begining the balancing process by entering the dimension and the weight of work piece.
Training and installation process of the machines which are given by our staff are finalized with the submission of a certificate.
Machine calibration is made in our company and calibration certificate is provided together with the machine. All our machines have CE certificate.
Drill unit can be added to the machine in accordance with workpiece to be balance.
